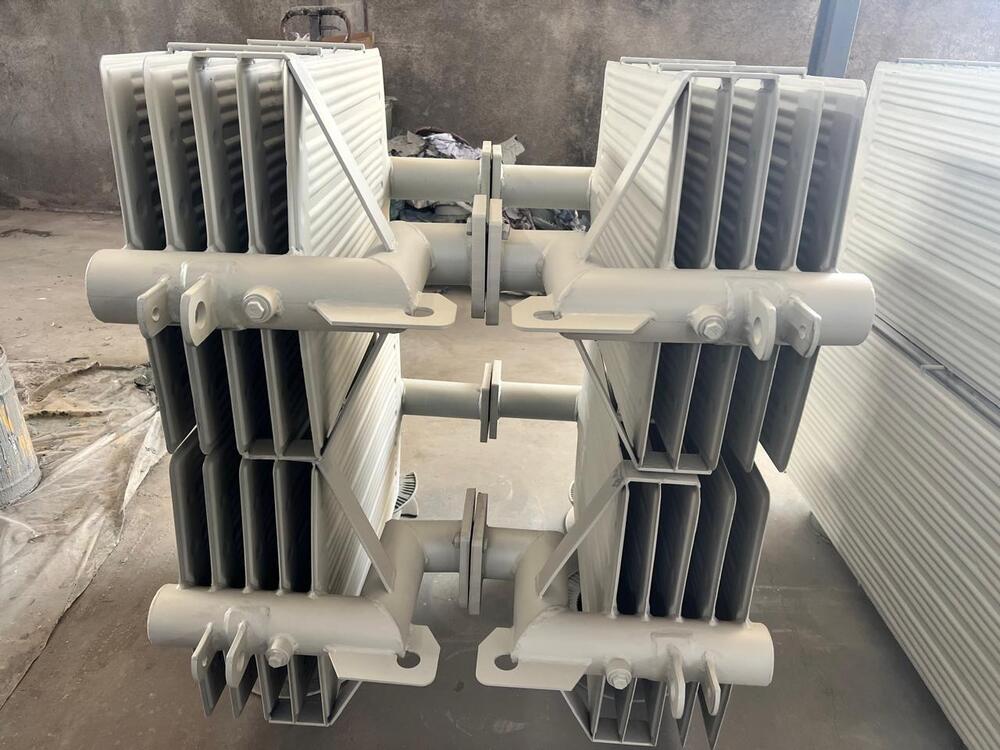

What Are Off-Center Radiators?

Off-center radiators are oilimmersed transformer cooling units where the header pipe is positioned to the side of the radiator panels (instead of the center). This lateral placement either to the left or right is designed to accommodate asymmetric space constraints or unique tank layouts, enabling easier installation in compact or customized environments.

Material	Stainless Steel
Transformer Type	Power Transformer
Phase	Single Phase
Application	oil immersed transformer
Corrosion Resistant	yes
Country of Origin	Made in India
width of plates	width of plates : 310mm, 480mm, 520mm, 535mm
Usage/Application	Industrial

Key Features & Specifications

• Offset Positioning:

  • Headers can be placed right or left at specified offsets such as 130mm or 180mm, as per customer needs.

  • Spatial flexibility allows these radiators to fit in tight, asymmetrical setups.

• Panel & Structural Details:

  • Plate widths commonly range from 220mm to 520mm .

  • Center-to-center distances span 500mm to 4000mm .

  • Sheet thickness: 1mm to 1.6mm, typically made from CRCA steel.

  • Fin count ranges from 1 up to 35 fins, depending on cooling requirements.Standards & Testing:

• • Manufacturers adhere to IEEMA, DIN 42559, IEC60076222, and other international standards

  • Hydrostatic pressure testing typically conducted at 2.0kg/cm or higher (e.g., 2.5kg/cm) for 1530 min to ensure leak-free reliability .

• Surface & Accessories:

• Primed and painted with epoxy, PU, or enamel coatings; grits blasting for better finish and corrosion resistance.

• Optional accessories include flanges, gaskets, lifting hooks, air-release plugs, and packaging suitable for exports


Applications

• Power & Distribution Transformers: Ideal for oil-cooled transformers that require lateral header placement .

• Custom Tank Designs: Suited to unconventional installations, limited space, or when central mounting is obstructed

Benefits

Benefit	Description
Spatial Flexibility	Side-mounted headers enable integration into compact or asymmetrical layouts.
Customizable Design	Tailored offsets, widths, center distances, and fin counts enhance adaptability.
High Thermal Efficiency	Maintains heat dissipation performance comparable to central designs by optimizing panel geometry and placement.
Robust Quality Assurance	Adherence to industry standards and rigorous testing ensures durability and reliability.
Corrosion & Wear Protection	Surface treatments and quality painting systems extend service life in harsh environments.
Installation & Maintenance Ease

Superior Heating Efficiency

Experience optimal warmth with our radiators' efficient heat transfer and space-saving design. By utilizing high-grade steel and off-center bottom connections, installation is straightforward and adaptable to different room layouts. Their high thermal output caters to diverse heating requirements in homes and commercial premises alike.


Built to Last

Engineered for durability, the powder coated surface enhances corrosion resistance, making these radiators a long-lasting investment. Their robust construction ensures reliable performance year after year, even under demanding conditions.


Versatile Installation and Style

Choose between wall-mounted or floor-mounted setups to best match your interior or heating layout. The classic white finish suits any decor, while custom colors can be requested for a personalized touch. The radiator's compact size and reliable connection type make it both practical and aesthetically adaptable.
