300MM Width Size HDG Radiators

Name: 300MM Width Size HDG Radiators
Brand: SANMAN ENGINEERING SERVICES
Price: 4000 INR
Availability: InStock

Price 4000 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

300MM Width Size HDG Radiators Specification

Usage
Transformer Radiator

Material
Stailness Steel

Size
Customized

Height
125 Meter (m)

Product Type
HDG Radiator

Weight
2 Kilograms (kg)

Color
Silver

Length
210 MM

Advantage
Industrial Transformer

Warranty
1

300MM Width Size HDG Radiators Trade Information

Minimum Order Quantity
10 Pieces

FOB Port
Vadodara

Payment Terms
Cash Advance (CA), Cheque, Letter of Credit (L/C), Telegraphic Transfer (T/T), Cash in Advance (CID)

Supply Ability
20 Pieces Per Month

Delivery Time
30 Days

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
standard Packing

Main Export Market(s)
Central America, Africa, Asia, South America, North America, Eastern Europe, Western Europe, Middle East, Australia

Main Domestic Market
All India, Rajasthan, Bihar, Chandigarh, Odisha, West Bengal, Chhattisgarh, Manipur, Andhra Pradesh, , Karnataka, Arunachal Pradesh, Mizoram, Madhya Pradesh, Central India, North India, Uttar Pradesh, Daman and Diu, Sikkim, Himachal Pradesh, Haryana, Pondicherry, Gujarat, Kerala, Jammu and Kashmir, Uttarakhand, Assam, Maharashtra, Nagaland, Lakshadweep, Andaman and Nicobar Islands, Dadra and Nagar Haveli, Tripura, Goa, Telangana, East India, Punjab, Delhi, Tamil Nadu, Meghalaya, Jharkhand, West India, South India

Certifications
ISO 9001 : 2015

About 300MM Width Size HDG Radiators

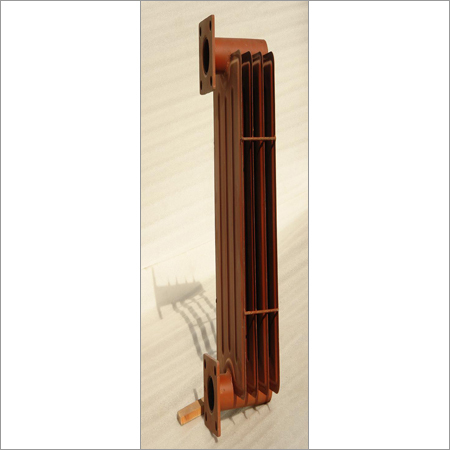

300 MM HDG Radiators for highly corrosive Area

What Are Width Flange Type Radiators?

These are flanged, panel-style radiators designed for oil-immersed transformers, such as power and distribution units. The width refers to the width of individual radiator plates common sizes include 300mm, 480mm, 520mm, 535mmallowing customization based on cooling needs and transformer dimensions

Flanged radiators are bolted onto transformer tanks via flanges, enabling secure attachment and easy removal for maintenance or replacement.

Features & Specifications

Feature / Spec	Details
Plate Widths	300mm, 480mm, 520mm, 535mm (customizable)
Materials	Mild steel, Stainless steel, CRCA (1mm / 1.2mm)
Header Pipe Options	ERW pipes (e.g., 3.5, 4.5)
Center Distance & Size	600mm to 4000mm; widths up to 3500mm possible
Fin Pitch & Fins per Radiator	Standard 4550mm pitch; up to 40 fins
Surface Treatment	Paint systems: enamel, epoxy, PU, MIO, zinc-rich/silicate; blast cleaning before application
Testing	Pressure tested at 2.0kg/cm for 30minutes to ensure leak-proof design

Applications

Oil-immersed power transformers: Both distribution and power variants benefit from precise cooling via these modular flanged radiators.
Industrial transformers requiring detachable cooling features for maintenance.
Radiators address space constraints (e.g., offset or gooseneck configurations) while ensuring efficient heat dissipation.

Benefits

Modular & Serviceable Flange-mounted design permits easy replacement or upgrades without full equipment disassembly.
Customizable Build Wide choice of plate widths, fin counts, center distances, materials, and paint finishes tailored for each transformer.
Durable & Corrosion-Resistant Options like stainless steel, zinc-rich primers, HDG, and epoxy coatings enhance lifespan and reduce maintenance.
Performance Assured Rigorous leak testing ensures operational reliability.
Efficient Heat Removal Optimized fin geometry and plate configuration maximize cooling performance.
Flexible Accessories Compatible with fans and specialized packing methods for export or heavy-duty applications.

Superior Heat Dissipation for Transformers

Our HDG radiators are built with a robust stainless steel structure, ensuring outstanding thermal performance for industrial transformers. The carefully engineered width and customizable size allow for precise fitment across different transformer models, promoting consistent cooling and longevity.

Made in India by Trusted Manufacturers

Produced by leading manufacturers, suppliers, and producers in India, these radiators uphold rigorous quality standards. Their silver finish not only augments corrosion resistance but also adds to the professional appearance of transformer installations.

FAQs of 300MM Width Size HDG Radiators:

Q: How are 300MM Width Size HDG Radiators used in transformer applications?

A: These radiators are installed on transformers to facilitate efficient cooling by dissipating heat generated during operation, thereby maintaining optimal performance and increasing the lifespan of the transformer.

Q: What materials are utilized in the construction of these radiators?

A: The 300MM HDG Radiators are fabricated using high-grade stainless steel, which offers durability, corrosion resistance, and ensures reliable operation in demanding industrial environments.

Q: When should these radiators be replaced or serviced?

A: It is advisable to inspect HDG radiators during routine transformer maintenance, typically annually. They should be serviced or replaced if there is evident physical damage, leakage, or noticeable degradation in cooling efficiency.

Q: Where are these radiators manufactured and supplied from?

A: These radiators are manufactured, produced, and supplied by reputable companies in India, ensuring accessible support and prompt delivery across domestic and international markets.

Q: What is the process for customizing the size of these radiators?

A: Customers can specify their exact requirements in terms of length, width, and height. The manufacturer then tailors the radiator dimensions according to transformer specifications, ensuring a perfect fit and optimum cooling performance.

Q: What are the main advantages of choosing these radiators for industrial transformers?

A: Key benefits include superior heat dissipation, lightweight design for easy installation, customizable sizing, corrosion-resistant silver finish, and a reliable 1-year warranty, making them ideal for critical industrial environments.
